The WZRELB Max 170v Input Volt Off Grid Dc Generator Solar System 60amp 60A Mppt Solar Battery Charger Controllers Mppt is a product that offers several key features, benefits, and unique selling points. It is designed for off-grid solar systems and has a maximum input voltage of 170v. The product includes a 60A MPPT solar battery charger controller, which efficiently charges batteries using solar power.
Key features:
1. Off-grid solar system: Designed for off-grid applications, providing power in remote areas or during power outages.
2. High input voltage: With a maximum input voltage of 170v, it can handle a wide range of solar panels.
3. 60A MPPT solar battery charger controller: Efficiently charges batteries using solar power, maximizing energy conversion.
Benefits:
1. Reliable power source: Enables users to have a reliable power source in off-grid locations or during emergencies.
2. Versatile compatibility: Works with various solar panels due to its high input voltage capacity.
3. Efficient charging: The MPPT solar battery charger controller ensures efficient charging, optimizing energy conversion and battery performance.
Unique selling points:
1. High input voltage capacity: The product’s maximum input voltage of 170v sets it apart from other solar battery charger controllers.
2. Off-grid functionality: Specifically designed for off-grid applications, making it a suitable choice for remote locations or backup power needs.
Overall, the WZRELB Max 170v Input Volt Off Grid Dc Generator Solar System 60amp 60A Mppt Solar Battery Charger Controllers Mppt offers a reliable and efficient solution for off-grid solar systems, with its high input voltage capacity and dedicated off-grid functionality.
WZRELB Max 170v Input Volt Off Grid Dc Generator Solar System 60amp 60A Mppt Solar Battery Charger Controllers Mppt
Full Refund if the item did not receive
Description
|
SPECIFICATION
|
||||||
|
Solar Charge Technology
|
MPPT ( Maxmium Power Point Tracking) technology
|
Stabilized Voltage Precision
|
≤±1.5%
|
|||
|
Efficiency
|
>99%
|
Input Protection
|
Low voltage protection/ High voltage protection/ Reverse polarity protection/ Short-circuit protection
|
|||
|
Rated Charging Current
|
60A
|
Temperature Protection
|
The fans will automatically on when the radiator temperature hits 50°C or when the charging current reaches 50% rated current.
Controller will stop work when the radiator temperature rises to 85°C. |
|||
|
Cut-off Current
|
62A
|
Environment Humidity
|
0-90%RH (without condensation)
|
|||
|
Battery Compatible
|
12v/24v/48v battery self-adaptive, 36v by manual setting
|
Altitude
|
0-3,000m
|
|||
|
Minimum Solar Panel Voltage
|
3V higher than the voltage of full-charged battery (e.g. voltage of fully-charged 12V battery 14.6V+3V=17.6V)
|
Atmospheric pressure
|
70-106KPa
|
|||
|
Maximum Solar Panel Voltage
|
170V DC
|
Working Temperature
|
-20°C ~ +50°C
|
|||
|
Maximum Solar Panel Power
|
720W (12V), 1440W(24V), 2160W(36V), 2880W(48V)
|
Storage temperature
|
-40°C ~ +70°C
|
|||
【Solar Charge Controller】60A, Max PV Input Volt 170V. Negative Ground. Use advanced full-automatic MPPT technology (maximum power point technology) to exatract the maximum power from solar array to charge the battery, efficiency over 99.97%. 3 stage. 【Available power system】 12V/24V/48V automatically identify, 36v power system available by manual setting. Max Input Solar Power : 720W (12V); 1440W(24v); 2880W(48V) 【Optional Battery type】Sealed, Lead-acid battery, colloidal batteries, liquid batteries, lithium batteries and so on. Contact seller if you are not clear for battery type. 【Protection】 Intelligent Touch Screen LCD display for working situation; Easy to check operation parameter of controller on PC by a RS485 communication interface. Safe solar battery charger protected against overcharge high/low input volt, input/output polarity reverse, short circuit and overheat. 【Product Size】9.5 x 7.9 x 3.6 inch, 7.6lb (24 x 20 x 9cm, 3kg)
may require an adapter or converter for use in your destination. Please check compatibility before purchasing.
Please firstly read all the user’s manual before use this charge controller.
* BATTERY should be the first parts to be connected to the controller. Please don’t connect the solar panels to the controller when the battery connection is not finished.
* When connecting to solar panel modules, please connect the negative side first, then connect the positive terminal.
* Please DON’T connect any INVERTER or ac appliances directly to this solar charge controller.
* When disconnect this system, please disconnect the solar panel module to controller first, then disconnect the battery to controller.
High Tech Smart LCD Touch Screen
* High sensitivity Touch screen enables you to adjust parameters more conveniently.
* Display shows up to 16 working information status at the say time, you can know the working status easily at one glance!
Intelligent Cooling Fan
* The fans will automatically on when the radiator temperature hits 50°C or when the charging current reaches 50% rated current. Controller will stop work when the radiator temperature rises to 85°C.
Esay and Safe Connection
* The embedded wiring design avoid wire head from exposuring, makes this controoler safe to use.
|
Instruction for High Tech Smart LCD Touch Screen
|
||
|
Solar Panel Cell Status
|
When the sun at the top left corner is light, the solar panels are connected.
|
|
|
PV Input Voltage
|
Shows the current PV solar module voltage.
|
|
|
Camulative Generating Capacity
|
Shows how many kwh power is generated after the controller is switched on.
|
|
|
Charging Current and Power
|
Shows what’s the real-time charging current 60A and real-time charging power kw.
|
|
|
Battery Status
|
Shows if the battery is under charging modes or not-charging modes, and shows the real-time battery voltage and capacity based on
full. |
|
|
Time
|
Shows the current date and time
|
|
|
DC load
|
Shows if the switch for loading dc appliances is on or off.
|
|
|
Working Temparature
|
Shows the real-time temperature inside the machine
|
|
Additional information
| Maximum Current | 60A |
|---|---|
| Rated Voltage | 48V, 36V, 24V, 12V |
Related products
12v DC Control Box with 1000W Inverter
$265.00
11% Off
RV Battery DC-DC Charger 40A Dual Battery System (2 ways Charger)
$199.00
20% Off
12V Battery System Control Hub with 1000W Inverter

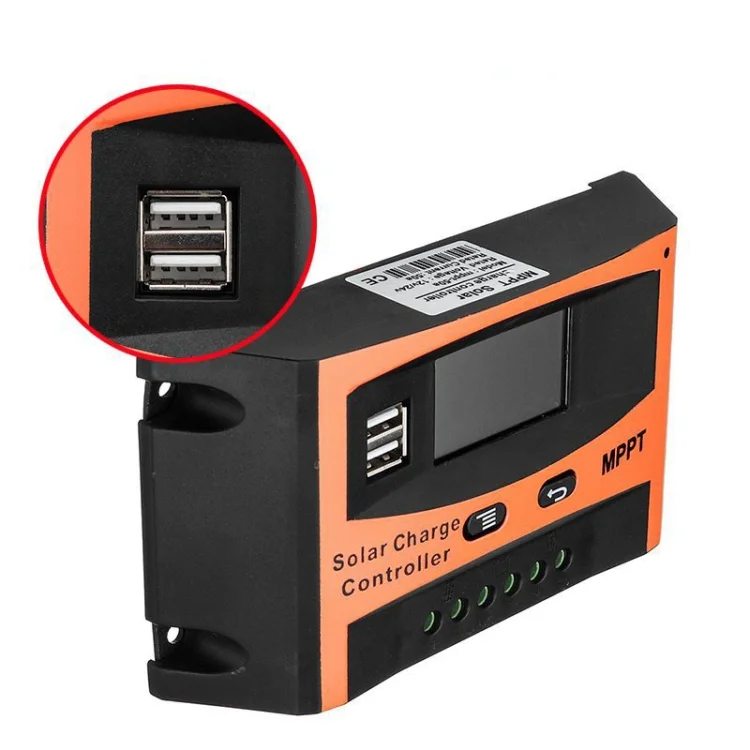

Solar Charger Controller MPPT 12V/24V with USB Output
