Best PV Solution for Small Power Requriement-Off-grid system Set from 1-20KW
Full Refund if the item did not receive
Description

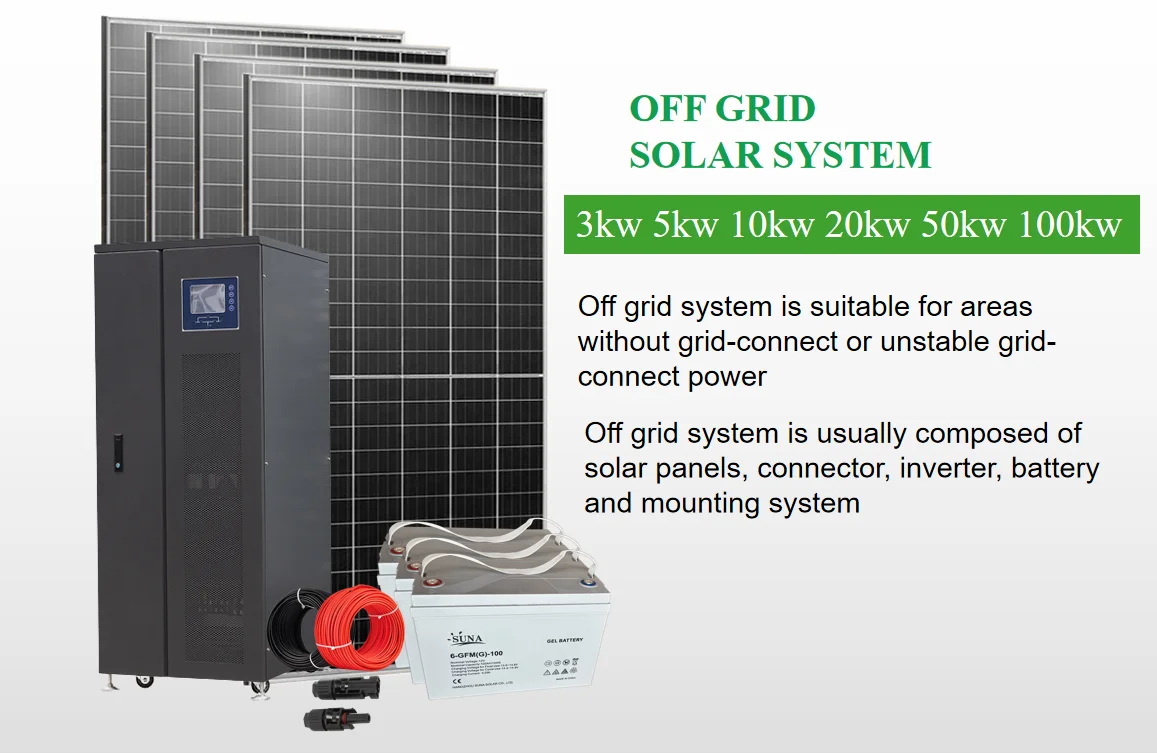

What is the off-grid system?
![](http://sc04.alicdn.com/kf/H9daacab74c5d41be81f76dc949ac20d3j/267974039/H9daacab74c5d41be81f76dc949ac20d3j.png)
PWM/MPPT Controller Optional

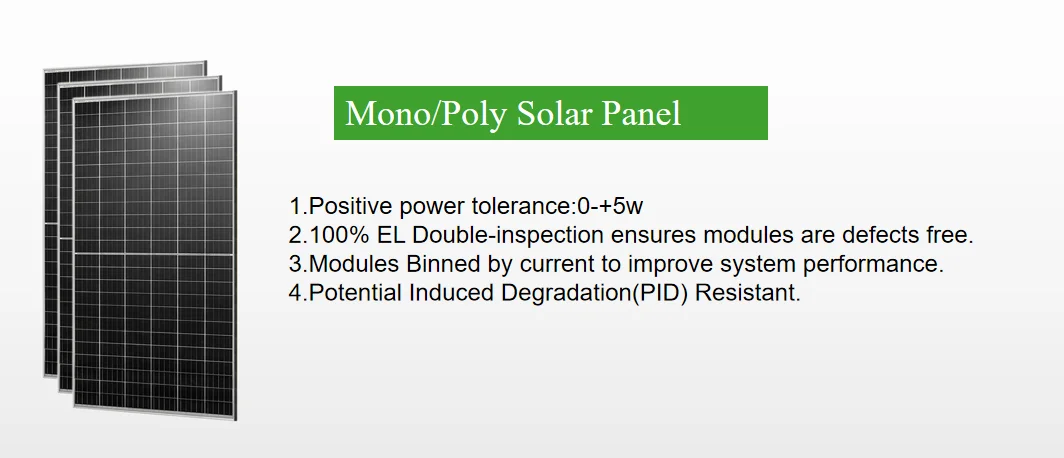

Poly/Mono solar Module Optional
Suna solar off grid solar system Confiquration
|
|||||
System Size
|
5kw
|
6kw
|
8kw
|
10kw
|
12kw
|
550w solar panel
|
6pcs
|
8pcs
|
12pcs
|
9pcs
|
15pcs
|
solar inverter
|
5kw
|
6kw
|
8kw
|
10kw
|
12kw
|
Gel Battery
|
12V/100AH
|
12V/150AH
|
12V/200AH
|
12V/200AH
|
12V/250AH
|
Mppt Controller
|
96V/60A
|
96V/60A
|
96V/60A
|
96V/60A
|
96V/100A
|
PV Combiner
|
H4T-96v
|
H4T-96v
|
H4T-96v
|
H4T-96v
|
H4T-96v
|
Panel rack
|
1set
|
1set
|
1set
|
1set
|
1set
|
Cables
|
1set
|
1set
|
1set
|
1set
|
1set
|
Kindly Reminder:The Above System Configuration For lnitial Design, The System Configuration Are Subiect to Changing Depends on Your actual installation Conditions and Requirements
|
![](http://sc04.alicdn.com/kf/H9fe30fc21e674ed9bd61b201073a8782a/267974039/H9fe30fc21e674ed9bd61b201073a8782a.png)
![](http://sc04.alicdn.com/kf/H6e26b8faccb9496f82c01ee1d424816fE/267974039/H6e26b8faccb9496f82c01ee1d424816fE.png)
![](http://sc04.alicdn.com/kf/Hc74ed83159df46e4bd0ce9bb752c84b1Z/267974039/Hc74ed83159df46e4bd0ce9bb752c84b1Z.png)
![](http://sc04.alicdn.com/kf/H7a7c37d26dc94707b4bf6856173367f7k/267974039/H7a7c37d26dc94707b4bf6856173367f7k.png)
![](http://sc04.alicdn.com/kf/H0eb04687a2c1428983b47674a0d5d3e3Y/267974039/H0eb04687a2c1428983b47674a0d5d3e3Y.png)
![](http://sc04.alicdn.com/kf/H1ee1d0e3dac14bbe99f36747f44fffecg/267974039/H1ee1d0e3dac14bbe99f36747f44fffecg.png)
![](http://sc04.alicdn.com/kf/H324b6a2e823e4b51a2d21428d9cb461cF/267974039/H324b6a2e823e4b51a2d21428d9cb461cF.png)
– CE, ROHS approved.
– High conversion efficiency, and high transmission rate.
– Energy saving, environmental-friendly.
– Advanced technology, strict quality control system.
– Easy installation, safe operation, and free maintenance.
– Low MOQ, fast delivery time, long service life.
Whole Set Off Grid Solar Energy Systems
|
|||||
Components
|
Solar Panel
|
Battery
|
Off Grid Inverter
|
Combiner Box
|
PV Cable
|
1KW-Off Grid
|
2/pcs
|
1/pcs
|
1KW
|
1/pcs
|
100 Meters
|
2KW-Off Grid
|
4/pcs
|
2/pcs
|
2KW
|
1/pcs
|
100 Meters
|
3KW-Off Grid
|
5/pcs
|
4/pcs
|
3KW
|
1/pcs
|
200 Meters
|
5KW-Off Grid
|
12/pcs
|
4/pcs
|
5KW
|
1/pcs
|
200 Meters
|
8KW-Off Grid
|
20/pcs
|
8/pcs
|
5KW*2
|
2/pcs
|
400 Meters
|
10KW-Off Grid
|
24/pcs
|
12/pcs
|
5KW*2
|
2/pcs
|
400 Meters
|
15KW-Off Grid
|
40/pcs
|
16/pcs
|
5KW*3
|
3/pcs
|
600 Meters
|
20KW-Off Grid
|
64/pcs
|
20/pcs
|
5KW*4
|
4/pcs
|
600 Meters
|
![](http://sc04.alicdn.com/kf/H5f932a1044da490d884018ca6b2a56776/248212004/H5f932a1044da490d884018ca6b2a56776.jpg)
> 25 years Warranty
> Highest conversion efficiency
> Anti-reflective and anti-soiling surface power
loss from dirt and dust
> Excellent mechanical load resistance
> PID Resistant, High salt and ammonia resistance

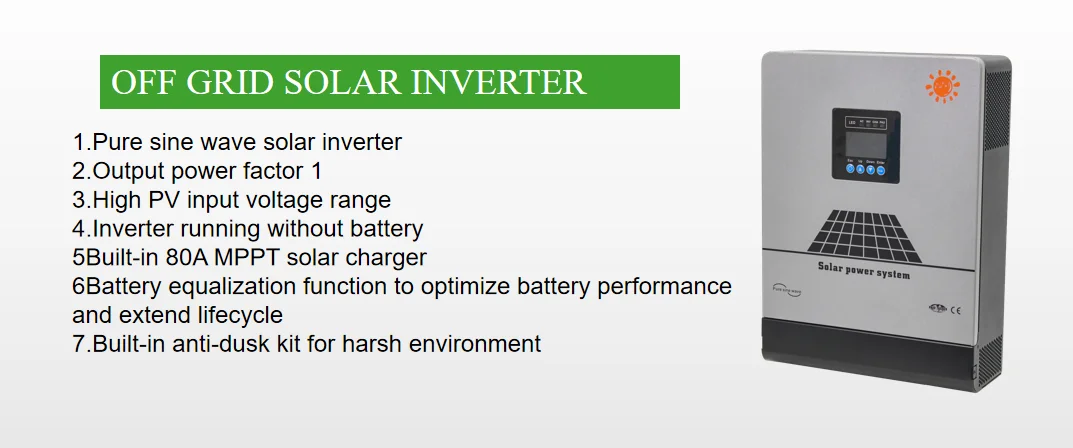

>The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller>a High Frequency Pure Sine Wave Inverter and a UPS
>Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
![](http://sc04.alicdn.com/kf/H6a1465717dd247c8a991fa28ca2269193/248212004/H6a1465717dd247c8a991fa28ca2269193.jpg)
![](http://sc04.alicdn.com/kf/H889a3d6c93d441ef91db115b166bde969/248212004/H889a3d6c93d441ef91db115b166bde969.jpg)

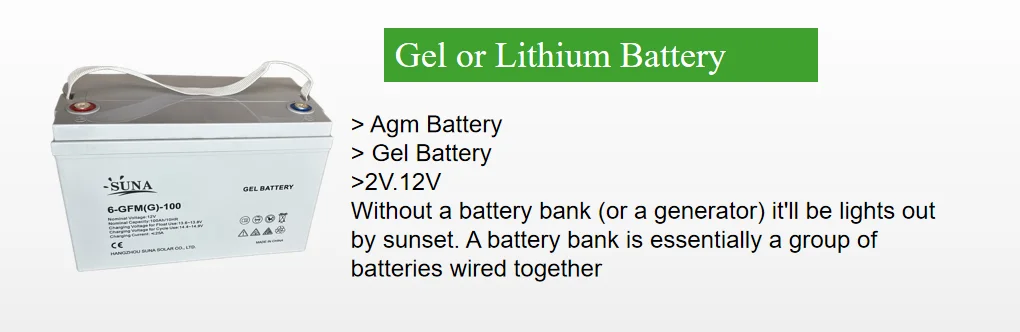

> Gel Battery
> 2V,12V
Without a battery bank (or a generator) it’ll be lights out by sunset. A battery bank is essentially a group of batteries wired together
>DC Disconnect
>AC Disconnect
>Battery Disconnect

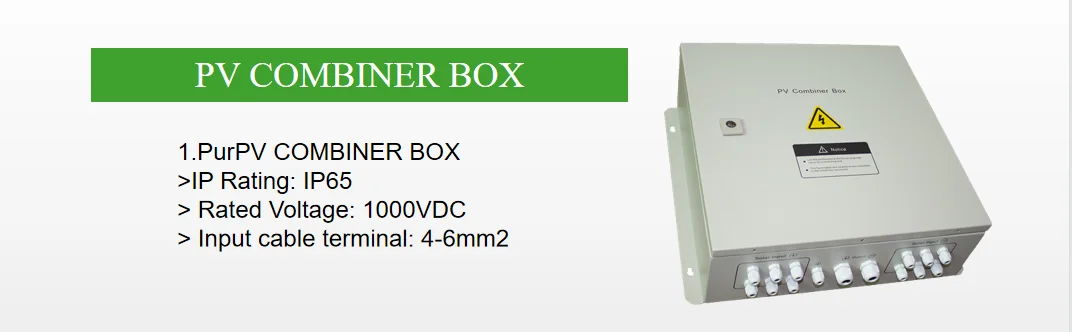

>PV Combiner
>Flexible Inputs Optional
>IP65 Protection Degree
![](http://sc04.alicdn.com/kf/H15bfef18d44241bdba108718f6893dc7k/248212004/H15bfef18d44241bdba108718f6893dc7k.jpg)
![](http://sc04.alicdn.com/kf/H85b61eb6a23d4dd0a205ac11effe8896s/248212004/H85b61eb6a23d4dd0a205ac11effe8896s.jpg)

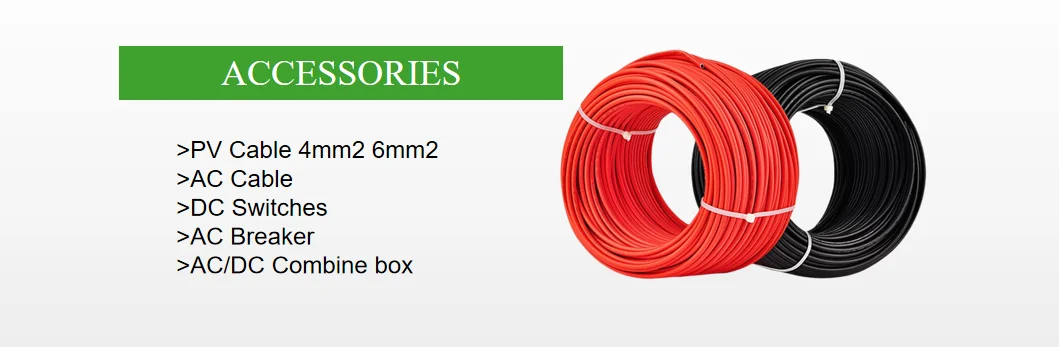

>PV Cable 4mm² 6mm²
>MC 4 compatible Connector
>AC/DC Combiner Box
>AC/DC Breaker
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
![](http://sc04.alicdn.com/kf/H7101cf03dc9042b88605c240ee5f7bddU/248212004/H7101cf03dc9042b88605c240ee5f7bddU.jpg)
![](http://sc04.alicdn.com/kf/H90116642fd504948a575d27b93dfde0aW/248212004/H90116642fd504948a575d27b93dfde0aW.jpg)
![](http://sc04.alicdn.com/kf/Hcc11f24c9cc3456f8723661776012416b/248212004/Hcc11f24c9cc3456f8723661776012416b.jpg)
![](http://sc04.alicdn.com/kf/H2298697475f24bdda8ae0f554881ea0dr/239001260/H2298697475f24bdda8ae0f554881ea0dr.jpg)
